Eight user-programmable switches
Four 35A circuits and four 18A circuits

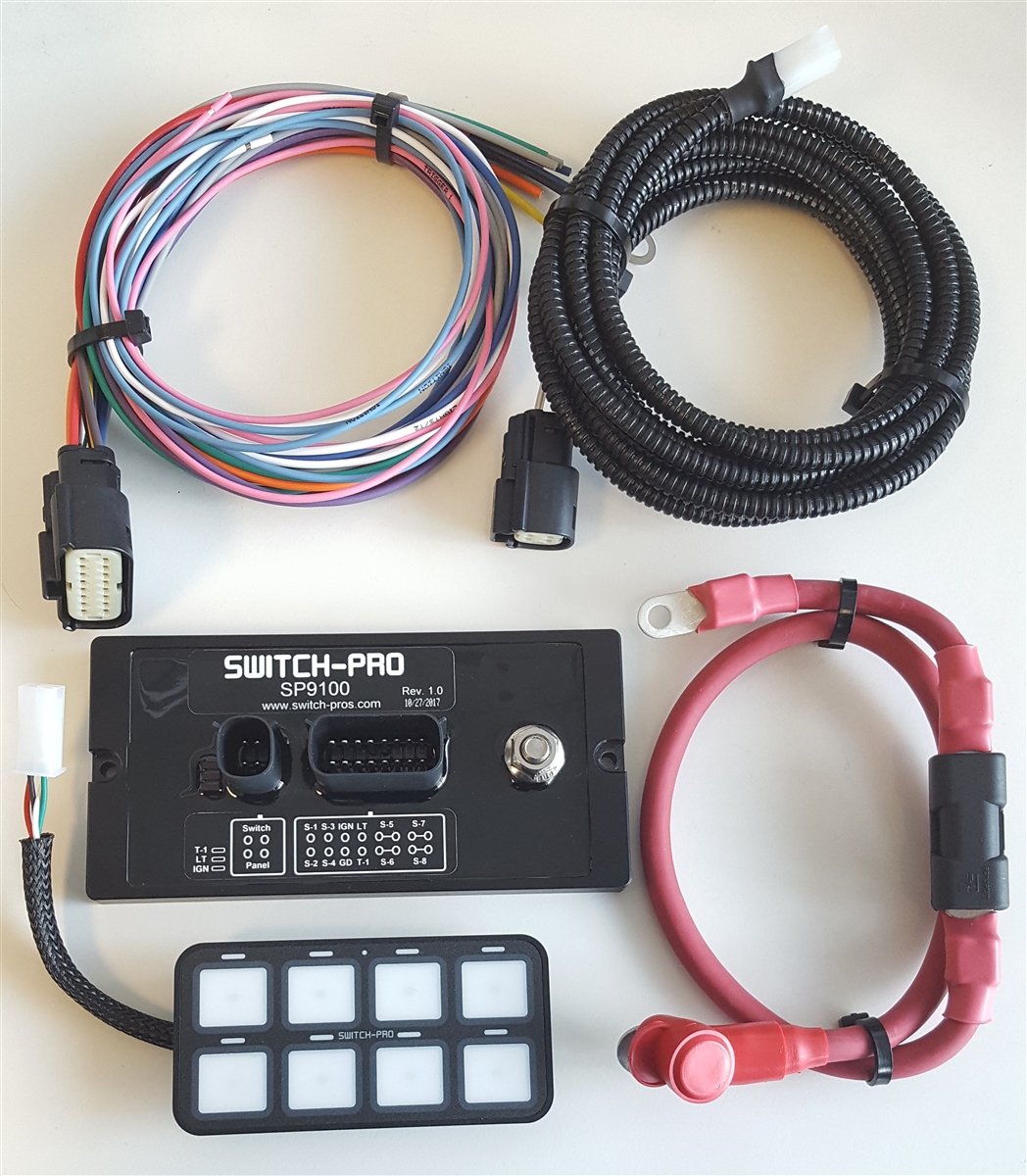

Waterproof, Solid State 125A Power Module
RGB Backlighting provides unlimited color options, using Color Picker on App
Daisy Chain up to 3 Switch Panels to One Power Module
Switches can be programmed for:
On/Off or Momentary
Ignition or Battery Input
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Memory Function
Master Mode, with ability to turn multiple outputs On AND Off with one touch
Automatic Power-Up upon vehicle start up
Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
Sleep Mode for minimal power consumption
Color Coded circuit wires
100 User-selectable switch legends
LED Input Status Indicators for easy troubleshooting
Time Delay Off function available for all circuits
Splash proof switch panel with Polycarbonate overlay faceplate
Program and control the system from switch panel pad or smart phone
Bluetooth interface with FREE Apple or Android App
Battery Voltage Readout on App screen
No Fuses or Bulky Relay box
Built-In Bluetooth Module
